Best buy with basic performance
that covers from everyday use to full-scale cycling

Start casually, the possibilities expand after started

The frame of the FXα is in common to the high-end model FX, and the high riding performance, light weight, and stylish design are exactly the same as the FX. The best buy of Tyrell sports folding bikes that can be used for everyday use, commuting, and full-scale weekend cycling.

FXα has high basic performance that can firmly respond to your desire that should arise after purchasing. You can double the front gear using high-grade components, or replace it with a drop handlebar.

  • The kickstand, seen in the above image is an optional parts (sold separately).
  • Please note in advance that some designs and specifications may differ from those shown in the images due to production timing and other factors.
Size of Wheels
Material of Frame
Folding

Features

Easy to carry around

The folded size of H 790 × W 870 × D 350 (flat handle) is thin and well balanced, and it is also lightweight. Although the display size is large, the actual performance of the wheel is very good.

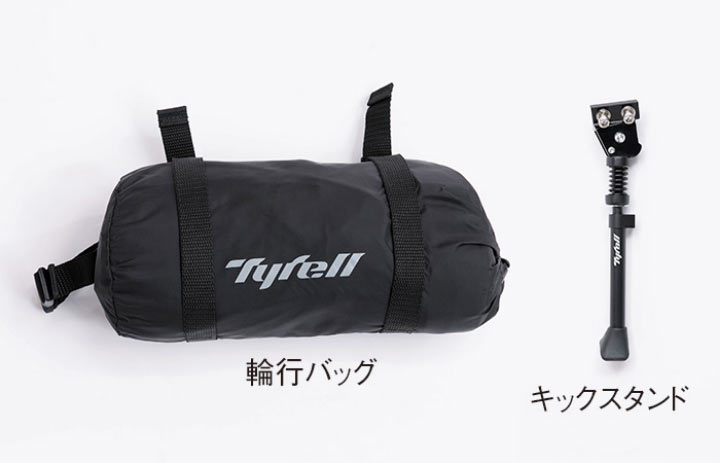

Optional parts

Optional parts that can be used more conveniently are available. A bicycle bag necessary when folding and using public transportation, and a kickstand greatly improves usability.

Carbon fork

The combination of aluminum folding parts and carbon fork legs achieves high durability and light weight.

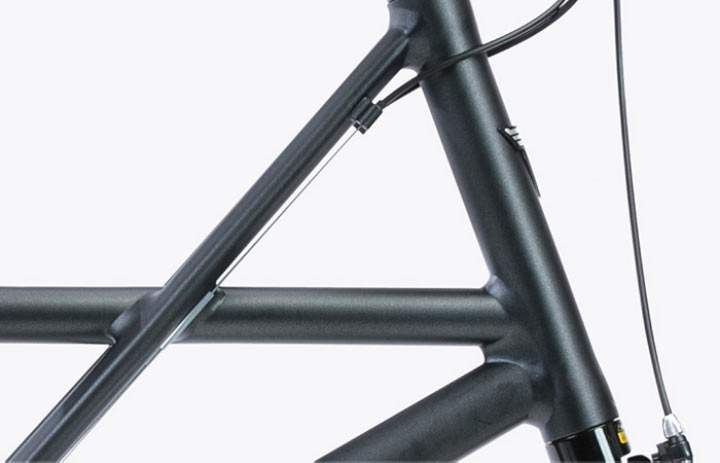

Beautiful welded finish

Smooth welding with inconspicuous weld beads is further polished by hand to achieve a smooth and beautiful frame silhouette.

Wheels

Equipped with Tyrell’s standard grade wheel AM-3. The rim height is 24 mm, the hub is the same as the AM-6 with high rotation performance.

Selectable color

A frame color that uses high-quality, highly colored acrylic paint.

How to fold

Foldable in just 4 steps, no tools required. Easy folding way you can image Intuitively.

Details

Folding size: W 870 mm × H 798 mm × D 350 mm

  • A Wheel Base: 1,075 mm
  • B Seat Tube length (C-T): 390 mm
  • C Virtual Top Tube length (Horizontal): 558 mm
  • D Head Tube angle: 70.0°
  • E Seat Tube angle: 73.0°
  • F Chainstay length: 431 mm
  • G Bottom Bracket height: 273 mm
  • H Full length: 1,545 mm

Specifications

Name: FXα

Complete bike SHIMANO SORA 1x9s
Weight 9.5 kg (not including wieht of pedal)
Colors Kurogane Spark Matt & Gloss Black, Sunset Orange & Gun Metallic, Turquoise Blue & Dark Silver Metallic, Italian Red & Matt Black, Muscat Green & Gloss Black
Manufacturing and Inspection Seeking the best balance between price without compromising performance or quality, we outsource manufacturing to Taiwan and conduct final quality inspections at our own factory.
  • For available components, framesets, specification changes and prices, please see ‹Specifications and Pricing [PDF]›.

Options

  • Kick stand for FX, FSX

  • Carrying bag Travel light

[Note: Images, specifications and prices on the website]

Specifications and prices of this product are subject to change without notice. Also, specifications and prices of the current model may differ from the images shown. For details, please check the latest specifications and price list or contact us.
